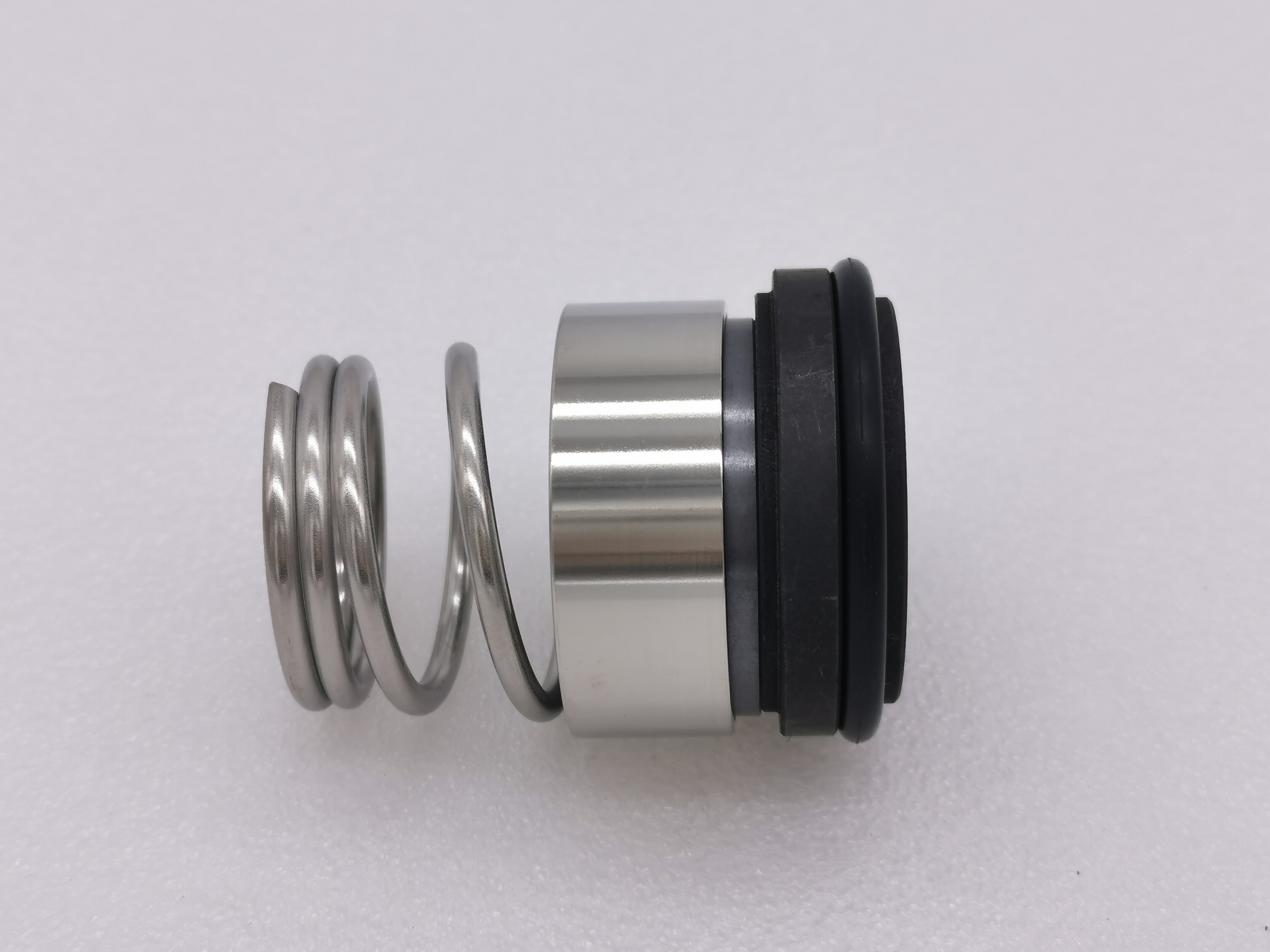

BMM32

• Pressure: Medium Pressure Mechanical Seals
• Speed: General Speed Mechanical Seal
• Temperature: High Temperature Mechanical Seal
• Performance: Wear
• Standard: DIN24960, ISO3069, GB6556
• Model NO.: M32
• Balance: Unbalanced
• Specification: Inner Diameter: 8 mm to 100 mm

Operation Parameters:

• Pressure: 1.0 MPa or less
• Temperature: - 30 ~ 180 ºC
• Linear Speed: 15 m/s or less

Materials:

• Rotary Ring Face: Carbon/SiC/TC
• Stationary Ring Face: Carbon/SiC/TC
• Elastomers: NBR/Viton/EPDM/PTFE/FFKM
• Springs: SS304/SS316
• Metal Parts: 410S/SS304/SS316/SS316L

Mediums: oil, water, amorphism acid, alkali, salt, and organic solvents.
