Slurry & FGD Seals
BM ZGJ
【附件下载】：资料下载
【产品特点】：BM ZGJ
Basic Features
Structure: Single End
Pressure: High Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear
Standard: DIN24960 ISO3069 ANSI B73.1M
Model NO.: BMZGJ
Balance: Balanced
Specification: Inner Diameter: 35 mm to 170 mm
Product Detailed Description

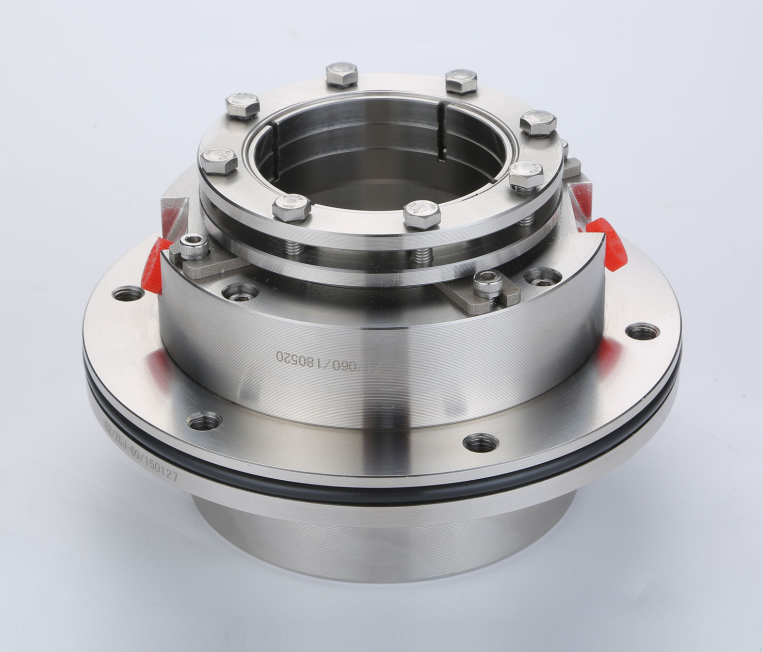

BMZGJ Mechanical Seals for Paper-making Equipment Alumina Plants Flue Gas Desulphurization Deashing System and Slurry Pumps FGD Mechanical Seal
Structural Features: single end multiple springs with spring protector balanced independent direction of rotation. The component is cartridge seal with easy installation. The compensation components are supporting the sleeve. The springs are not touching the subjects so that there will be no jam caused by the high viscosity and crystallization active content. This makes sure the flexibility of the compensation ring and as a result it lasts the lifetime of the whole component. Easy installation no need to disassemble the seal cavity for the installation.
BM Seals is the China national standard maker of "Specification for Mechanical Seal of FGD Pump" (JB/T 12391-2015).
Industrial Standards: DIN24960 ISO3069 ANSI B73.1M
Scopes of Application: mainly used in paper-making equipment alumina plants flue gas desulphurization (AKA FGD) deashing system (for power plants) and slurry pumps for industries such as coal washery mining sewage treatment paper making metallurgy power plants and chemical engineering. This seal works as an alternative to similar products of Warman.
Basic Features
Structure: Single End
Pressure: High Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear
Standard: DIN24960 ISO3069 ANSI B73.1M
Model NO.: BMZGJ
Balance: Balanced
Specification: Inner Diameter: 35 mm to 170 mm
Product Detailed Desc
BMZGJ Mechanical Seals for Paper-making Equipment Alumina Plants Flue Gas Desulphurization Deashing System and Slurry Pumps FGD Mechanical Seal
Structural Features: single end multiple springs with spring protector balanced independent direction of rotation. The component is cartridge seal with easy installation. The compensation components are supporting the sleeve. The springs are not touching the subjects so that there will be no jam caused by the high viscosity and crystallization active content. This makes sure the flexibility of the compensation ring and as a result it lasts the lifetime of the whole component. Easy installation no need to disassemble the seal cavity for the installation.
BM Seals is the China national standard maker of "Specification for Mechanical Seal of FGD Pump" (JB/T 12391-2015).
Industrial Standards: DIN24960 ISO3069 ANSI B73.1M
Scopes of Application: mainly used in paper-making equipment alumina plants flue gas desulphurization (AKA FGD) deashing system (for power plants) and slurry pumps for industries such as coal washery mining sewage treatment paper making me
Operation Parameters:
Pressure: 0 ~ 1.2 MPa
Temperature: - 20 ~ 130 ºC
Linear Speed: 10 m/s or less
Pressure of Cooling Water: 0.1 MPa or less
Solid Capacity: 30% or less
Materials:
Rotary Ring: SiC/TC
Stationary Ring: SiC/TC
Elastomers: Viton/EPDM/Aflas
Springs: SS304/SS316/HC276
Metal Parts: 410S/SS304/SS316/SS316L/2507/2205
Mediums: paper pulp, coal cinder, slag, ash and other fluids with solid powder.
Pressure: 0 ~ 1.2 MPa
Temperature: - 20 ~ 130 ºC
Linear Speed: 10 m/s or less
Pressure of Cooling Water: 0.1 MPa or less
Solid Capacity: 30% or less
Materials:
Rotary Ring: SiC/TC
Stationary Ring: SiC/TC
Elastomers: Viton/EPDM/Aflas
Springs: SS304/SS316/HC276
Metal Parts: 410S/SS304/SS316/SS316L/2507/2205
Mediums: paper pulp, coal cinder, slag, ash and other fluids with solid powder.
